Zodiac Pool Heat Pumps

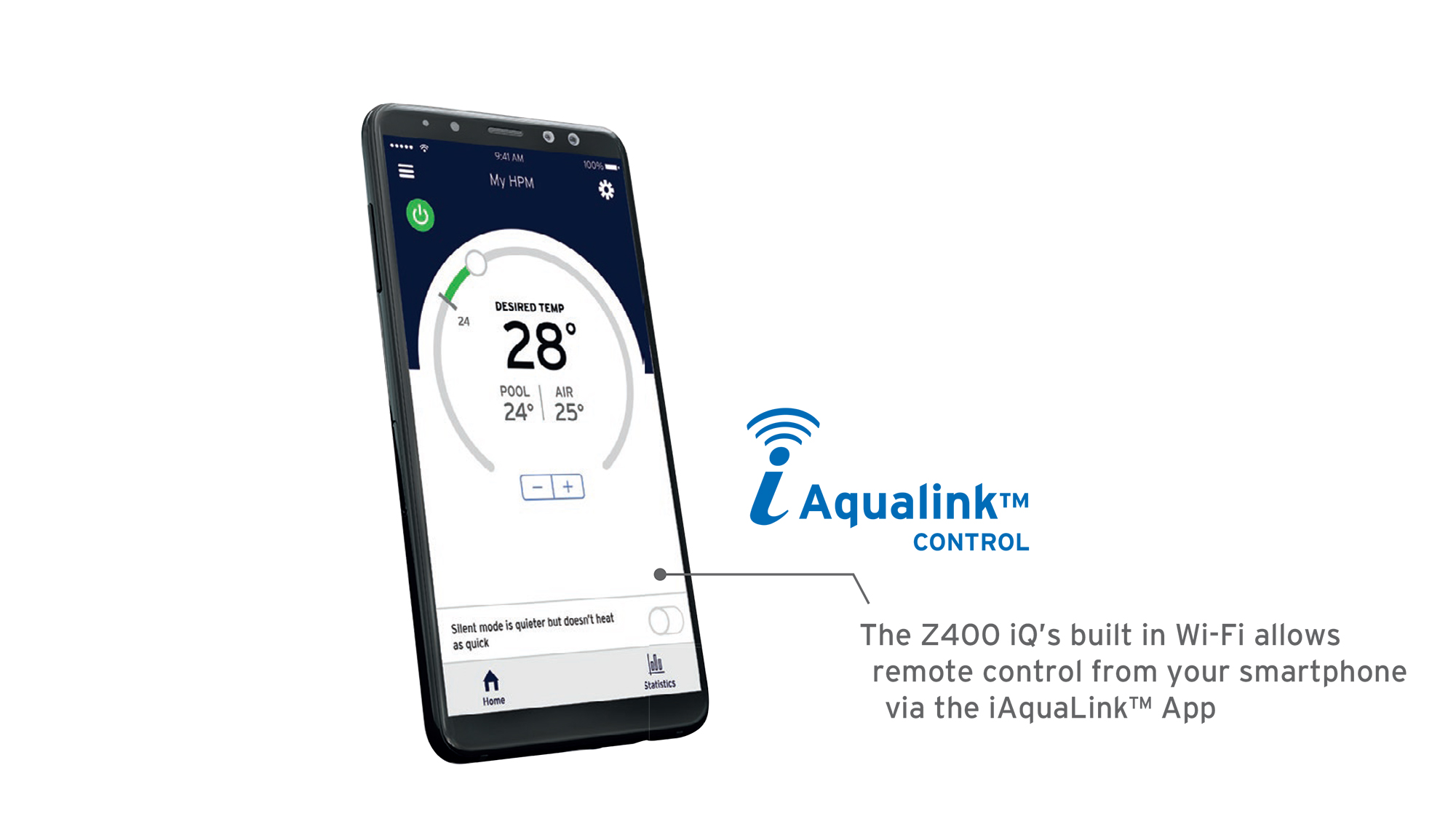

Introducing two exceptional pool heating solutions: the Z400 iQ Heat Pump and the Zodiac Z200 Heat Pump. Designed to cater to all-season needs, the Z400 iQ is our latest mid-sized residential pool heater, offering intensive defrosting capabilities and efficient pool cooling. Packed with features and built to last, it guarantees reliable heating for years to come and comes equipped with iAquaLink WiFi technology for convenient smartphone control.

On the other hand, the Zodiac Z200 Heat Pump provides continuous, reliable heat to your pool, even at night, at a surprisingly affordable price. Despite its compact size, it is feature-rich and “intelli-heat” ready, allowing easy temperature setting and independent operation from your filter cycles. Discover the perfect pool heating solution with the Z400 iQ and Z200 Heat Pumps.

For warranty information please click here.

Zodiac Z400 Pool Heat Pump

Features & Benefits

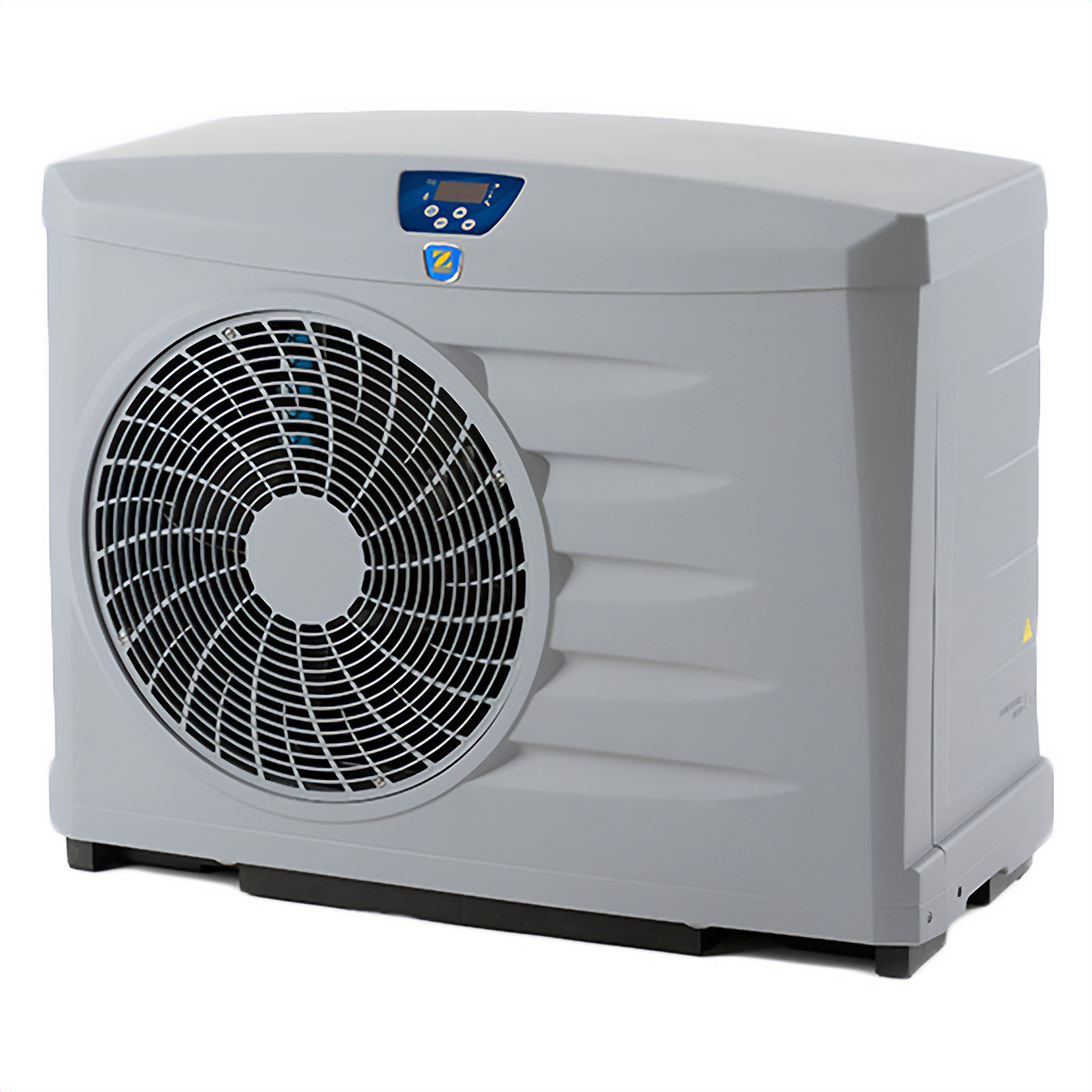

Z200 Pool Heat Pump

  • Perfect for extending your swimming season through the colder months
  • Affordable operating costs
  • Easy, inexpensive installation with minimal plumbing
  • Robust and effective; made for Aussie conditions

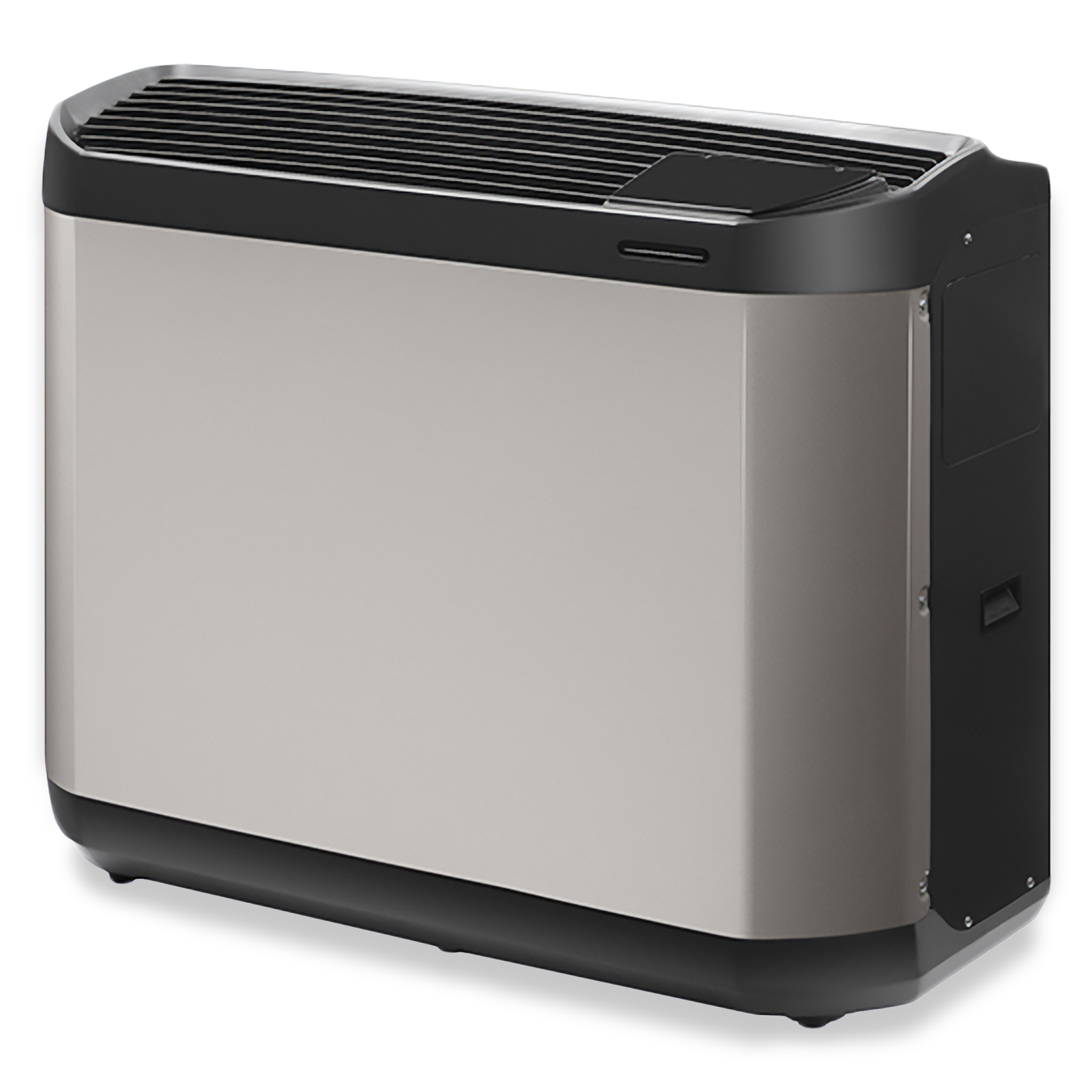

Z400 iQ Pool Heat Pump

  • All-seasons reverse-cycle heating solution
  • Energy efficient to help cut down on power consumption
  • Titanium condenser
  • Robust and effective; made for Aussie conditions
  • New sleek, modern style



Specifications

View

Get in contact
Contact our expert sales staff for more further information or a quote
heat pump inverter compressor

Astral Pool Heat Pumps

The AstralPool range of Heat Pumps now includes both standard technology and the new Inverter technology. Inverter technology allows the swimming pool heat pump to reach an extremely high COP compared with normal heat pumps in the market.

PROUDLY AUSTRALIAN MADE

Sunbather products are proudly Australian made and committed to local manufacture. They continually test the performance and durability of their materials under Australian conditions.

QBCC Licence No: 1538 6317
NSW Fair Trading Licence No: 26792C
ACN: 004 898 631

Model No.M3M4
Pool Coverage
Recommended Max Pool Volume<35,000L<45,000L
Heating Capacity (at Air=28°C)9kW12kW
Programming
InstallationPlug & Play.Plug & Play.
Equipment
Power Input (at Air=28°C)1.9kW2.5kW
Coefficient of Performance (at Air=28°C)4.7 COP4.7 COP
Model No.Z400 iQ MD4Z400 iQ MD5Z400 iQ MD7Z400 iQ MD8Z400 iQ MD9
Recommended pool volume* (m3)30-5040-7550-8075-11080-120
Hydraulic connectionPVC half unions Ø50, to be gluedPVC half unions Ø50, to be gluedPVC half unions Ø50, to be gluedPVC half unions Ø50, to be gluedPVC half unions Ø50, to be glued
Electric power supply230V/1/50Hz230V/1/50Hz230V/1/50Hz230V/1/50Hz230V/1/50Hz
Dimensions (W x D x H)1,030 x 479 x 880 mm1,030 x 479 x 880 mm1,030 x 479 x 1,027 mm1,145 x 509 x 1,027 mm1,145 x 509 x 1,027 mm
Sound pressure at 10 m (dB(A)) (Boost/Silent Mode)36/3337/3538/35Data currently being certified.Data currently being certified.
Programming
Power returned (kW)9.513.61721.124.4
Consumed power (kW)1.62.53.23.94.5
Average COP (Coefficient Of Performance)5.85.55.45.45.4
